Cabin Fuse Panel

Cabin Fuse Panel

This information is no longer relevant, left as-is with no updates planned as of 16/06/2025.

REASON: This information is no longer maintained, and has proven to be of no feasible use.

This is a more technical page, if you are simply looking for vehicle-specific fuse and relay information or minimum required fuses, see HERE instead, and for general relay information, see HERE

This page is a half complete mess from an idea that went as well as a lead balloon. The only reason this page still exists is due to the time it took to create, and the hope that someone can make sense of anything discovered in here. Every attempt has been made to make the notes here legible, but this is not guaranteed.

the cabin fuse box has 11 individual electrical plugs that comprise it’s wiring, and as such the wiring has been divided as below per plug.

All diagrams assume that you are facing either the front or the back of the cabin fuse panel, with the relays at the top.

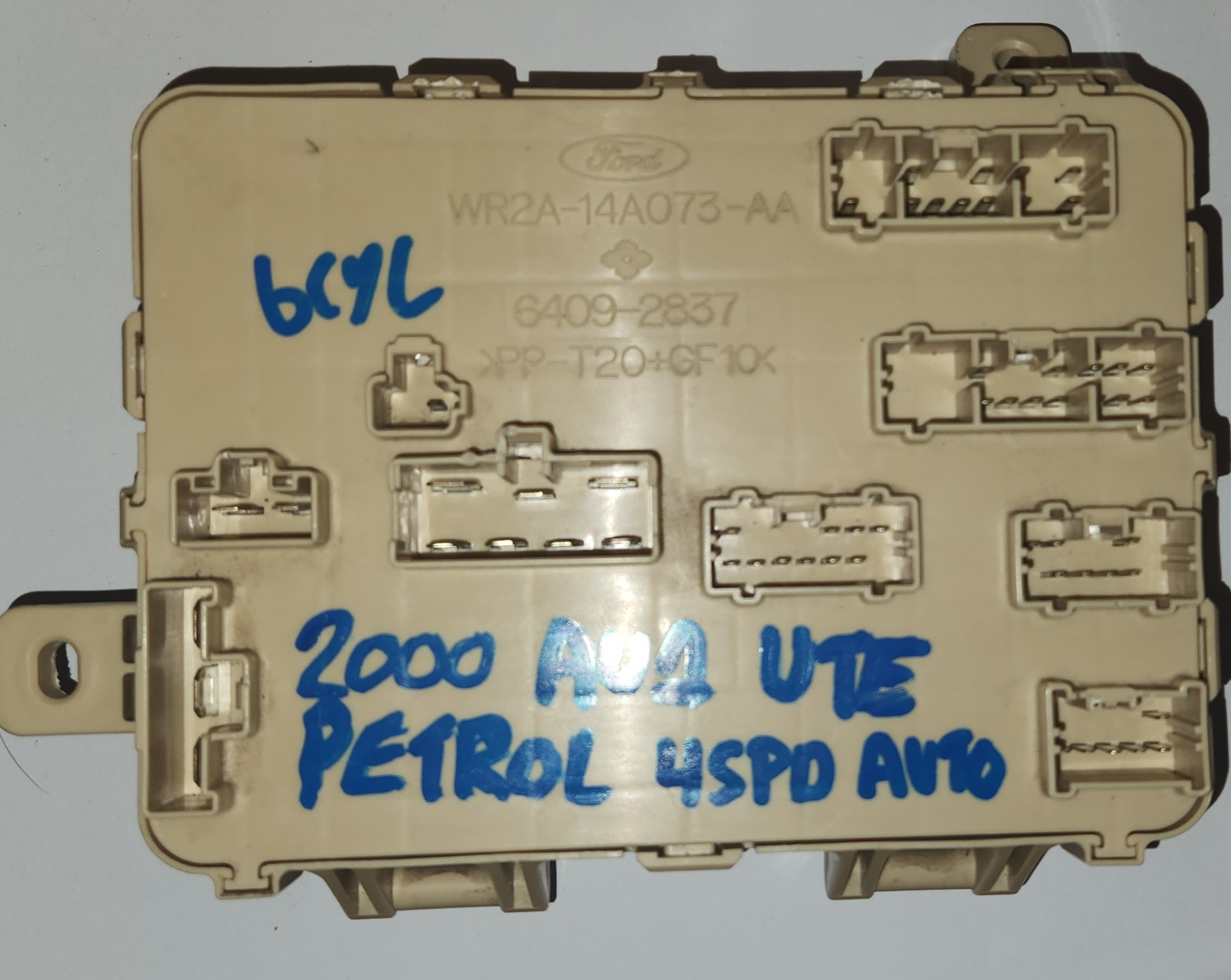

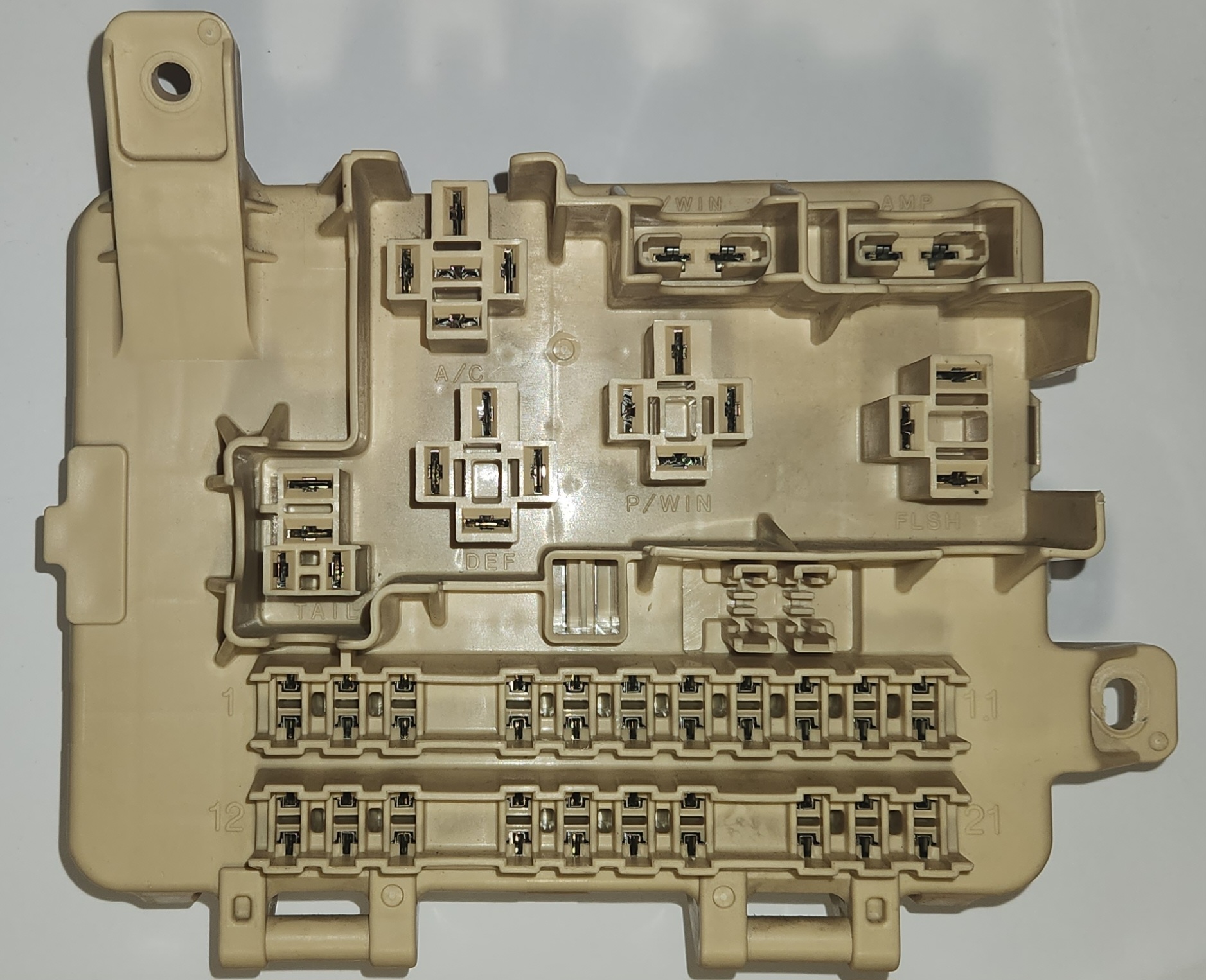

Cabin Fuse Panel - Front Cabin Fuse Panel - Rear

Pictures of how the fuse panel should be facing you from the front a rear respectively

Reading this guide

Use the legends table below to decipher what each code means. This was made in order to make more sense of the pins on both the front AND back of the cabin fuse box

Code Meaning Notes
Fx-y Fuse location by number index requires below diagram or labelled cabin fuse panel. e.g. F1-1 for the top pin of fuse 1, F1-2 for fuse 1’s bottom pin, etc. (assume you are facing the cabin fuse panel with the relays at the top and the fuses down the bottom)
Rx-y Relay pin location by index requires guide below, e.g. R1-1 for the top pin of the A/C relay

Fuse & Relay Connectors (Front)

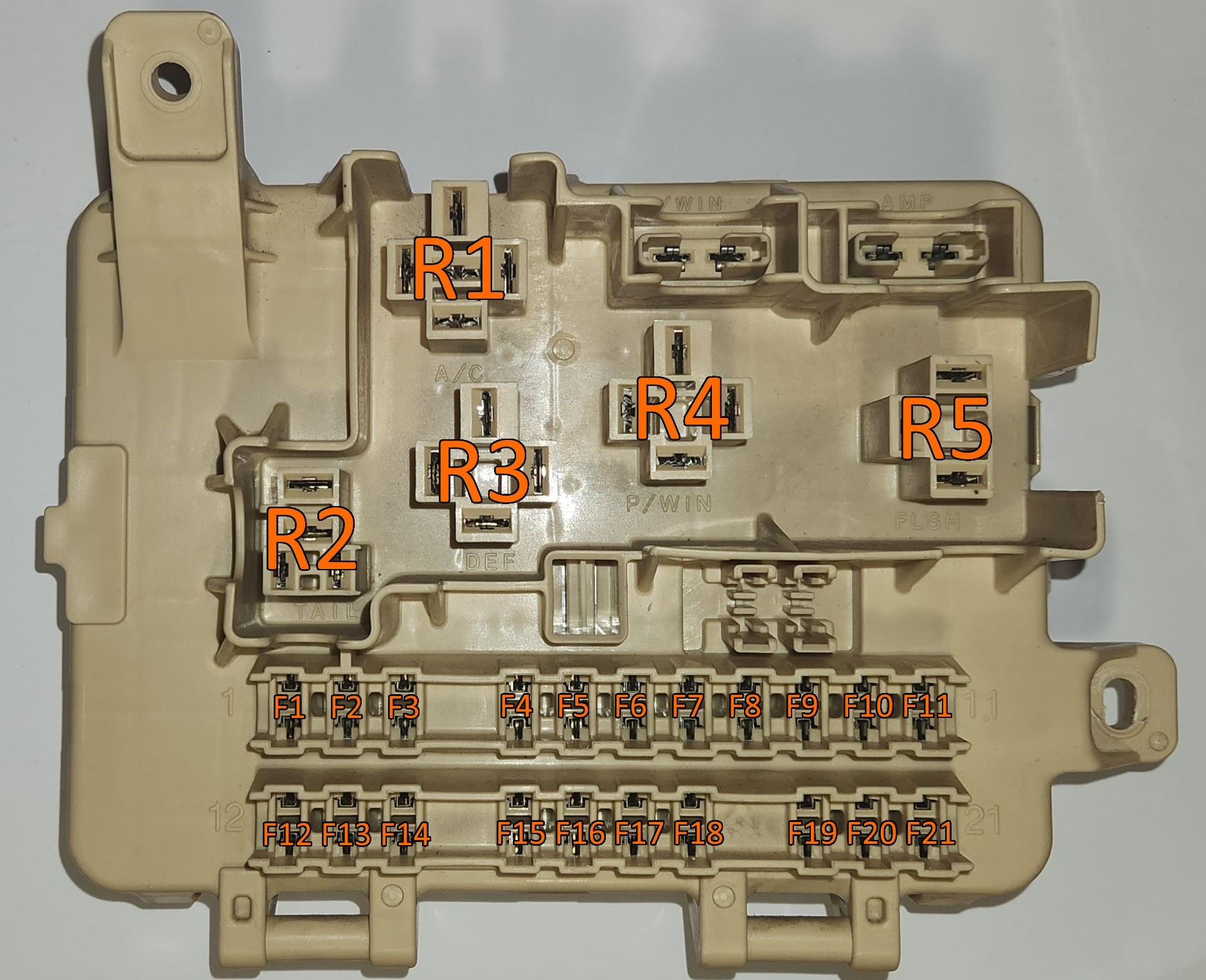

These connectors are identifiable according to the annotated image:

fuse and relay connector layout

The P/WIN and AMP fuses are not marked on purpose, both because they are clearly marked AND because depending on the manual, these have different designations, which overlap with the existing fuses in the bottom

Main Fuse Cluster

Below is a layout of all fuse block pins:

F1-1 F2-1 F3-1 F4-1 F5-1 F6-1 F7-1 F8-1 F9-1 F10-1 F11-1
F1-2 F2-2 F3-2 F4-2 F5-2 F6-2 F7-2 F8-2 F9-2 F10-2 F11-2
F12-1 F13-1 F14-1 F15-1 F16-1 F17-1 F18-1 F19-1 F20-1 F21-1
F12-2 F13-2 F14-2 F15-2 F16-2 F17-2 F18-2 F19-2 F20-2 F21-2

relay 1 - A/C Relay

This relay is a the only full-sized 5 way relay connector present in the cabin fuse panel. For the following assume the following layout:

R1-1
R1-2 R1-3 R1-4
R1-5

Pin definitions

Index Relay Terminal Number
R1-1 87
R1-2 85
R1-3 87a
R1-4 86
R1-5 30

More information: Relays

relay 2 - TAIL Relay

This relay is a half-size 4 way relay connector. For the following assume the following layout:

R2-1
R2-2
R2-3 R2-4

Pin definitions

Index Relay Terminal Number
R2-1 2
R2-2 1
R2-3 5
R2-4 3

These half-size relays are generally 5-way relays rather than 4-way, however in the Original part, the pin between R2-1 and R2-2 (relay terminal pin number 4) has been cut off

More information: Relays

relay 3 - DEF Relay

This relay is a full-size 4 way relay, for the following assume the following layout:

R3-1
R3-2 R3-3
R3-4

Pin definitions

Index Relay Terminal Number
R3-1 87
R3-2 85
R3-3 86
R3-4 30

More information: Relays

relay 4 - P/WIN Relay

This relay is a full-size 4 way relay, for the following assume the following layout:

R4-1
R4-2 R4-3
R4-4

Pin definitions

Index Relay Terminal Number
R4-1 87
R4-2 85
R4-3 86
R4-4 30

More information: Relays

relay 5 - FLSH Relay

This relay is a 3 way flasher relay, for the following assume the following layout:

R5-1 R5-2
R5-3

Pin definitions

Index Relay Terminal Number
R5-1 49a
R5-2 31
R5-3 49

More information: Relays

Connector Plugs (Rear)

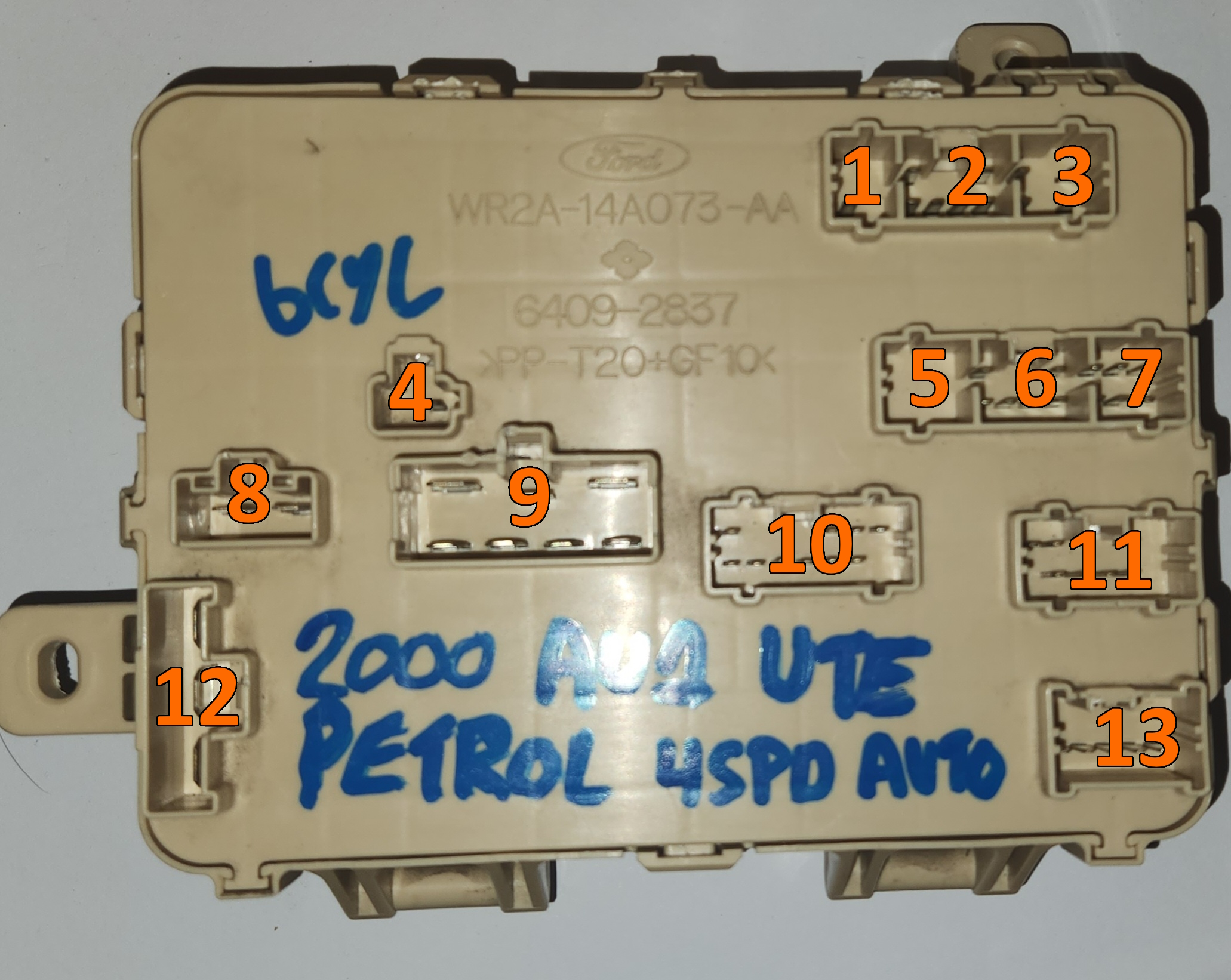

These plugs are identifiable according to the annotated image below

annotated rear connectors

plug 1 - 1-way connector

this plug contains a single pin, noted as 1-1, which has continuity with F21-2

plug 2 - 6-way connector

For the following assume the following plug layout:

2-1     2-2
2-3 2-4 2-5 2-6

These pins have continuity with the following:

pin continuity
2-1 R1-2
2-2 R5-1
2-3 R5-3
2-4 Circuit 3
2-5 R1-3
2-6 Circuit 5

plug 3 - 4-way connector

For the following assume the following plug layout:

3-1   3-2
3-3   3-4

These pins have continuity with the following:

pin continuity
3-1 R3-1
3-2 Circuit 4
3-3 left pin - AMP fuse
3-4 F14-2

plug 4 - 1-way connector

This plug has a single pin, noted as 4-1, which has continuity to Pin R4-1

plug 5 - blank

This plug does not have any connectors in the Forte models

This may be different in other models, information limited as project only involved Forte cabin fuse boxes

plug 6 - 6-way connector

For the following assume the following plug layout:

6-1     6-2
6-3 6-4 6-5 6-6

These pins have continuity with the following:

pin continuity
6-1 F9-2
6-2 Circuit 5
6-3 R3-2
6-4 F10-1
6-5 connected to pin 6-4
6-6 Circuit 4

plug 7 - 6-way connector

for the following assume the following plug layout:

7-1 7-2 7-3
7-4 7-5 7-6

These pins have continuity with the following:

pin connectivity
7-1 F1-1
7-2 F12-2
7-3 Circuit 4
7-4 F19-2
7-5 F19-2
7-6 F5-2

plug 8 - 2-way connector

for the following assume the following plug layout:

8-1 8-2

These pins have continuity with the following:

pin continuity
8-1 R1-1
8-2 Circuit 6

plug 9 - 7-way connector

Plug 9 is unique as it has 2 different pin sizes within the plug housing. There are 3 pins on the top row and 4 on the bottom, as below:

9-1 9-2 9-3
9-4 9-5 9-6 9-7

These pins have continuity with the following:

pin continuity
9-1 right pin - P/WIN fuse
9-2 F18-2
9-3 Circuit 7
9-4 R1-1
9-5 Circuit 2
9-6 R4-1
9-7 Circuit 6

plug 10 - 10-way connector

for the following assume the following plug layout:

10-1       10-2 10-3 10-4
10-5 10-6 10-7 10-8 10-9 10-10

These pins have continuity with the following:

pin continuity
10-1 F7-1
10-2 F2-2
10-3 Circuit 3
10-4 R2-3
10-5 R4-2
10-6 F3-1
10-7 F6-1
10-8 F4-1
10-9 F3-1
10-10 F5-2

plug 11 - 7-way connector

for the following assume the following plug layout:

11-1 11-2     11-3
  11-4 11-5 11-6 11-7

These pins have continuity with the following:

pin continuity
11-1 Circuit 11
11-2 Circuit 3
11-3 F12-2
11-4 F14-1
11-5 Circuit 4
11-6 Circuit 4
11-7 F13-2

plug 12 - 3 way connector

for the following assume the following layout:

12-1 12-2 12-3

These pins have continuity with the following:

pin continuity
12-1 Circuit 8
12-2 Circuit 9
12-3 Circuit 10

plug 13 - 6-way connector

for the following assume the following layout:

        13-1
13-2 13-3 13-4 13-5 13-6

These pins have continuity with the following:

pin continuity
13-1 F19-2
13-2 F16-1
13-3 F20-1
13-4 Circuit 4
13-5 Circuit 4
13-6 R3-1

Additional Circuits

Circuit 1 - P/WIN

There is a direct link between the following pins, related to the Power Windows circuit

Circuit 2 - DEF

There is a direct link between the following pins, related to the Rear Window Defrost circuit

Circuit 3 - TAIL

There is a direct link between the following pins, related to the Tail light circuit

Circuit 4 - A/C & FLSH

There is a direct link between the following pins, related to the FLSH and A/C circuits:

Circuit 5 - Misc. Fuses & Connector Pins No. 1

There is a direct link between the following pins, related to a single fuse, and multiple rear connector pins:

Circuit 6 - Misc. Fuses & Connector Pins No. 2

There is a direct link between the following fuse pins, related to multiple connector pins and multiple fuses:

Circuit 7 - Misc. Fuses & Connector Pins No. 3

There is a direct link between the following fuse pins, related to multiple connector pins and multiple fuses:

Circuit 8 - AMP

There is a direct link between the following pins, related to the Amplifier circuit

Circuit 9 - Misc. Fuses

There is a direct link between the following pins, related to a single connector pin and multiple fuses:

Circuit 10 - P/WIN

There is a direct link between the following pins, related to the Power Window Circuit, one connector pin, and multiple fuses:

Circuit 11 - TAIL

There is a direct link between the following pins, related to the TailLights relay and a fuse:
