Brake Switch

Brake Switch

If you find that your brake lights are not turning on when you expect, or you find the cruise control is not disengaging when pressing the brake pedal, you may find that you have a faulty brake switch. The brake switch is the electrical component that tells the car that you have pressed the brakes, as without it the car only mechanically activates the brake booster.

The brakes will not fail due to a brake switch failure. If you find any symptoms with your brakes mechanically then there is a problem with the brake system itself

Plug Information

Unfortunately, the connector used for the brake switch is a OEM connector seemingly made by Ford. Thankfully, this connector is quite common across Fords from America between 1969 and 2006. The most common of these models appears to be the Ford Mustang, which had this connector for the same functionality between 1971 and 2004. Alternatively, the blades are a standard size and could be adapted to directly if required.

eBay Brake Switch Connector

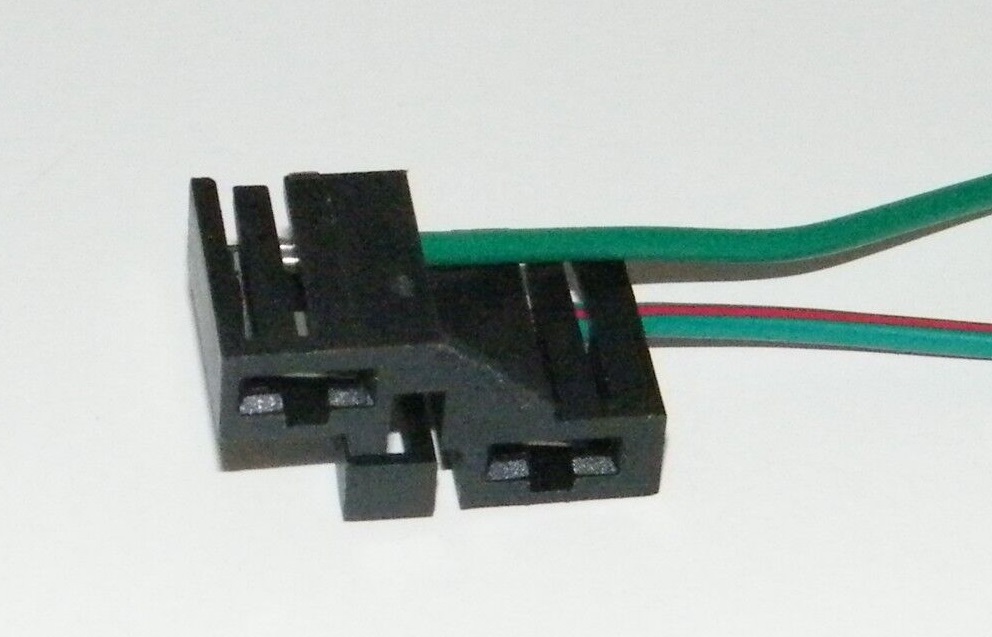

Image of a brake switch loom, taken from an eBay listing

Diagnosis

Diagnosis for this part is simple. Start the vehicle and put your foot lightly on the brake pedal, in any gear. Have another person check for brake light funtionality

Alternatively, 2-3 standard red bricks can be wedged into place to force the brake pedal down, however this is a last resort option if no one else is available

Replacement

Follow the below steps to replace your brake switch:

These steps are easiest completed with the driver seat removed, but can be done from the side of the car or by laying upside-down on the front-drivers seat, depending on your flexibility

  1. Find and remove the yellow retaining pin from the end of the brake pedal shaft, located on the passenger-side of the brake pedal lever, towards the top.

    Brake Switch Yellow Pin

    Yellow retaining pin on brake pedal shaft. Note picture was taken after replacement due to space constraints.

  2. If present, remove the small green plastic ring from the brake lever pin by pulling it from the brake pedal shaft.

    This ring should be present, but in older models, they could potentially break or not be reinstalled if the switch was replaced previously

  3. Remove the brake switch by pulling the passenger side section (with the complete hole) over the top of the shaft, and then pulling the driver side section (the semi-circle opening) of the switch away from the shaft. The switch sits around the brake booster level, with the closed end to the left of and the open end on the right of the lever.

    Alternatively you can pull the brake booster lever off of the brake pedal shaft all at once, however this was found to be inefficient

    Brake booster lever

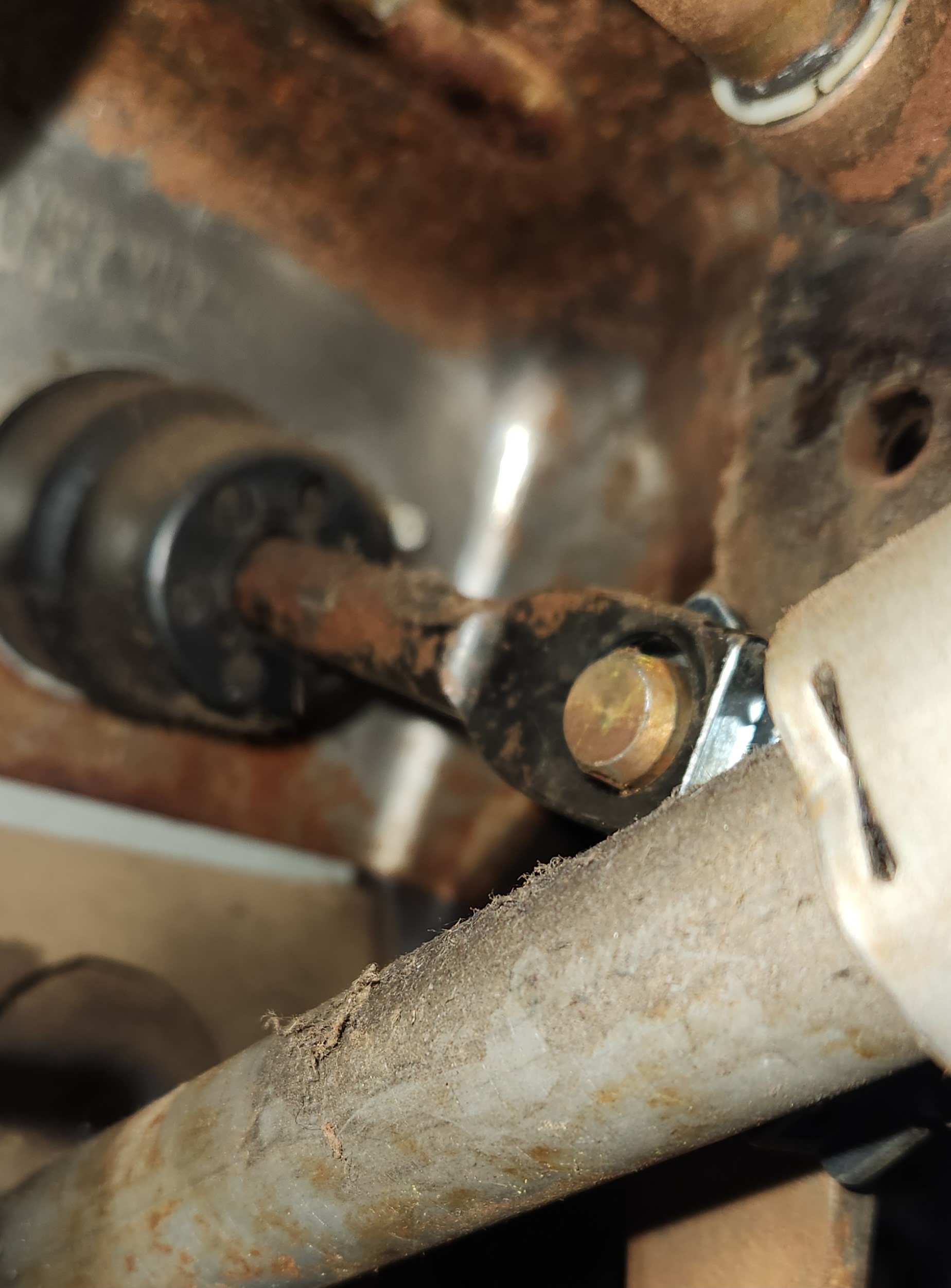

    Picture of the brake booster lever, after the brake switch has been removed

    Brake switch closed side

    The closed side of the factory brake switch. This is the section that will need to be pulled over the shaft

    Brake switch open side

    The open side of the factory brake switch. This is the section that can be pulled away from the brake pedal shaft once the closed side is removed

  4. Unplug the electrical connector by pulling up on the retaining tab on the loom end connector

    Brake switch electrical connector

    Picture of the factory brake switch connector. The clip on the brake switch itself is reinforced from underneath, necessitating removal by moving the retaining clip of the loom end connector instead.

  5. Reverse all previous steps to reinstall, ensuring that the switch has:
    • The open side on the driver side of the brake booster lever
    • The closed side on the passenger side of the brake booster lever
    • Been secured in using the green plastic ring and retaining pin
    • Is electrically connected to the loom

    Brake switch installation layout

    Picture of the switch after installation. Note the pin, green ring, and location of the brake booster lever

  6. Done
