Reading the Tickford Vehicle Engineering (TVE) Plates
Reading the Tickford Vehicle Engineering (TVE) Plates
Important Note
This page contains all collated information on the TVE plates, but contains very little first-hand information on them. This is due to the primary vehicle used for this project not being fitted with any of the following:
- Tickford Modifications
- Dual-Fuel LPG
- Tickford-Authorized LPG System
- A T Series build plate (as it is not a T-Series trim)
As a result of this, information on this page is considered incomplete indefinitely.
Tickford Vehicle Engineering Plate
Some models of AU Falcon were modified by Tickford in some way. In these cases, an additional plate is riveted to the inside of the hood of the affected models, near the coolant overflow tank.
Where the TVE plate would be installed if present

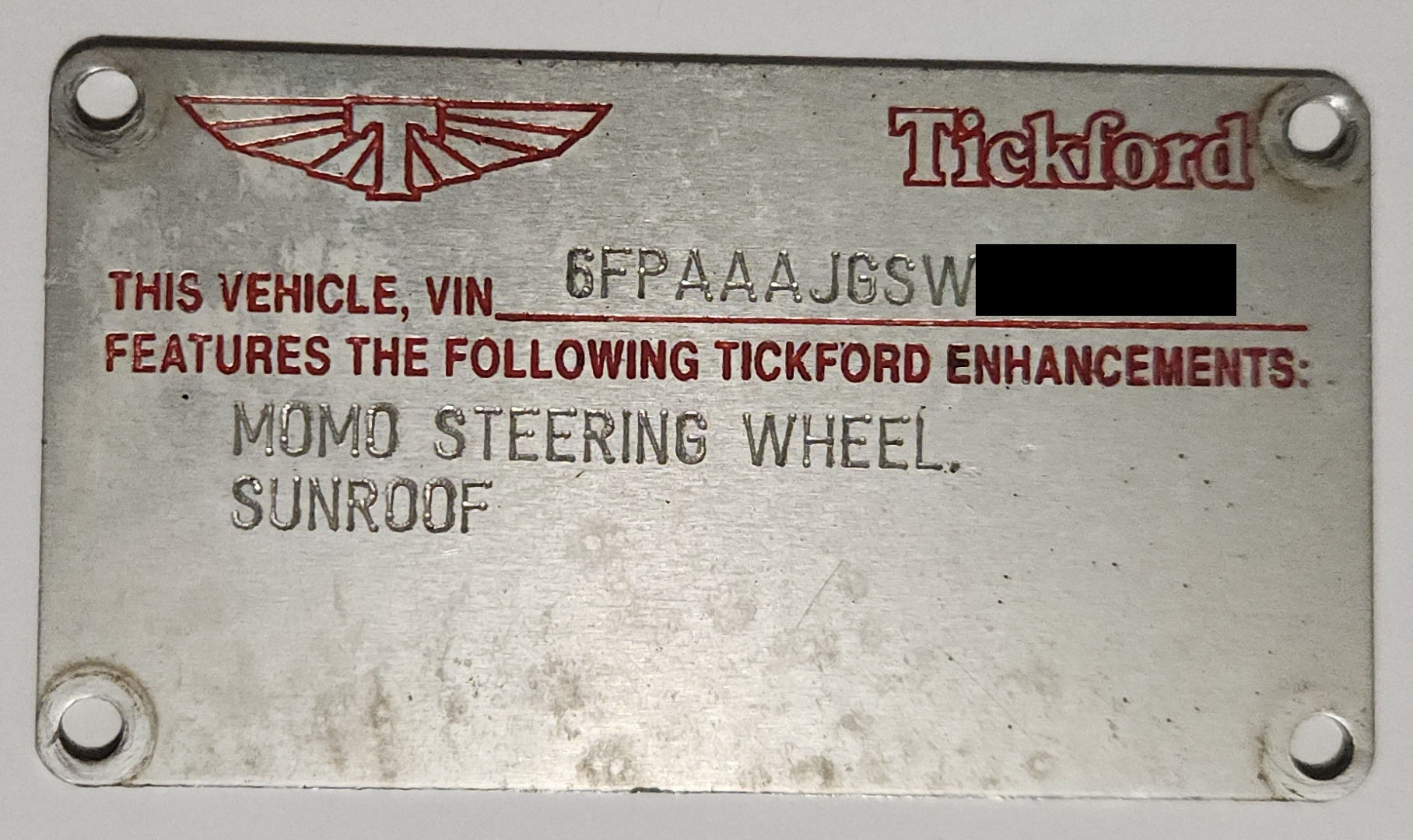

Picture of a removed TVE plate, which had the Momo steering wheel and Sunroof options installed
List of Available Modifications
Below is a list of known Tickford-supplied modifications, based on multiple marketing brochures from the period.
As this information was pulled from multiple sources, accuracy cannot be guaranteed and information is likely incomplete. Every effort has been made to ensure as much accuracy as possible
| Modification | Plate Abbreviation | Description / Notes |
|---|---|---|
| 17x8 5 spoke alloy wheels (235/45R17 tires) | 17" ALLOY WHEELS |
5 spoke Tickford wheels, generally fitted to XR models. Popular due to simple design |
| Dual-Fuel LPG System | Seperate Plate Fitted | Only known way to get dual-fuel “from the factory” |
| Body styling kit with front and rear skirts, rocker mouldings and full wing spoiler | BODYKIT |
Tickford-specific body kit, generally only used on the XR variants |
| Momo steering wheel | MOMO STEERING WHEEL |
Includes both the coloured Leather steering wheels and the wood-accented “Luxury” steering wheel |
| Momo steering wheel and Momo T-Bar shifter | MOMO STEERING WHEEL & 'T'BAR |
Includes both the coloured Leather steering wheels and the wood-accented “Luxury” steering wheel |
| Premium Brakes | PREMIUM BRAKE PACKAGE |
Approx. 330mm diameter Brembo brake upgrade fitted to Series 2-3 AU Falcons. Different to the brakes fitted to the T-Series models, which have no plate abbreviation due to these models not having the Modification Plate |
| Sport Suspension | unknown | only present on plate if non-XR as Sport Suspension was standard on XR trim |
| Sunroof | SUNROOF |
|
| Tickford Authorized LPG System | Seperate Plate Fitted |
Alternative Plates
Certain options and configurations had alternative plates, listed below:
Tickford Build Number Plate
T-Series models of the AU Falcon (TE50/TS50/TL50) did not appear to have Tickford option plates. Instead they were fitted with a Build number plate, which contains a build number vertically on the left side, and a Tickford “Winged T” logo, the Model number (TE50/TS50/TL50) and the VIN Number on the right side. The Tickford build number plate, if present, can be found in the same location as the TVE Plate.
Tickford Dual-Fuel LPG Option Plate
Another similar-but-different Tickford-issued Options Plate was the Factory Dual-Fuel LPG system. This system is remarkably rare and as such, so is the Option Plate. If fitted, the plate will be present on the passenger side of the engine bay, next to the Air Conditioner line, and should contain the following, in the following approximate layout:
V.I.N
6FPAAAJG_________
|
|
ENGINE No.
JG_________
|
DATE 00/00/0000
|
TANK DATE 00/00/0000
|
WATER VOL. 00 LITRES
|
L.P.G SERIAL No. AU 0000
|
|
Where the Tickford Dual-Fuel LPG plate would be installed if present
Tickford Authorized LPG Plate
LPG system installed by an authorized workshop may have another Tickford branded plate installed, which has Tickford logos on the top, followed by information in the following layout:
Information suggests that the Authorized LPG plate should be located in the same place as the Dual-Fuel LPG Plate, however as this is not a factory fitted plate this is not guaranteed
THE LPG SYSTEM COMPLIES WITH ADR44/01 & AS1425-1989
|
|
INSTALLED BY LICENCED WORKSHOP No. AAA00000
|
|
V.I.N 6FPAAAJG_________
|
|
ENGINE No. JG_________
|
DATE 00/00/0000
|
L.P.G SERIAL No. XXX0000
|
|
